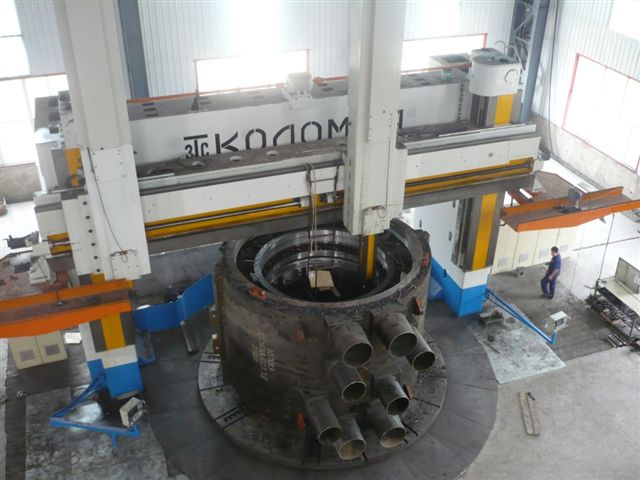

VTL 6M / 8.3M 150 TON / (OPTIONAL LIVE TOOL / C-AXIS ) VL 8300 (2009)

Return to Previous Page

Product Description

Lot of 3 machines (price for all three) Tos 80mm HBM, 10-12mm x 2m bending rolls, TPK SC90 - Pipe bender
NILES VTL Conventional type 4,400mm / 6,000mm (1950)

VTL 6M / 8.3M 150 TON / (OPTIONAL LIVE TOOL / C-AXIS ) VL 8300 (2009)



MACHINE REF :2654

Machines For Sale — . Borer, Vertical/VTL Ram Type CNC

MAKE :VTL 6M / 8.3M 150 TON / (OPTIONAL LIVE TOOL / C-AXIS )

MODEL :VL 8300

YEAR OF MANUFACTURE :2009

CONTROLLER :CNC / (CNC Siemens 840D OPTION)

SPECIFICATION :VERTICAL LATHE
CMABS VL8300
Max, turning diameter 8300mm
Table diameter 6000mm
Max, height of workpiece 4000mm
Max, weight of workpiece 150t
Cutting force of head(CNC) 80KN
Max, torque of table 315KNm
Vertical travel of crossrange 2850mm
Vertical travel of ram 2520mm
Elevating speed of crossrange 300mm/min
Power of main motor 110KW
Speed range of table 0.25-25 rpm/m
Section dimension of ram 320 x 300mm
travel of tool head 3450mm
X/Z Feed range carriage 0.1 – 2400mm/min
Rapid travel of head 2400mm/min
CNC control
YOM Jan ,2009
Weight of machine 280 ton
Inspection possible
Deliverytime immediately

DESCRIPTION :OPTIONAL for extra cost:
CNC Siemens 840D
C-axes
Live tool (milling spindel)
Toolchanger (x2)
Turning / milling toolholders
Surrounding covers
Aircleaning system
Angular millingheads
Measuring probe

Categories: ,

Description

VTL 6M / 8.3M 150 TON / (OPTIONAL LIVE TOOL / C-AXIS ) VL 8300 (2009)



Price: Write Us

Date of Offer :
Location : Not Stated
Quantity : 1
Availability : 02 Mar 2010
