RECENTLY POSTED MACHINES
Explore recently posted machines in our inventory

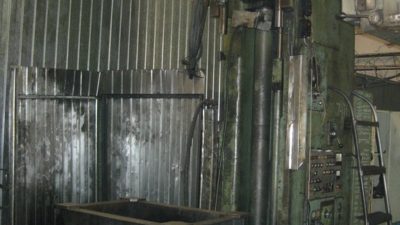

SKODA Floor Type Horizontal Borer (1981) W250H, spindle 250 mm, XY 5000x4150 mm, rotary table (1981)
MACHINE REF :10992
Machines For Sale — . Borer, Horizontal Floor
MAKE :SKODA Floor Type Horizontal Borer (1981)
MODEL :W250H, spindle 250 mm, XY 5000x4150 mm, rotary table
YEAR OF MANUFACTURE :1981
CONTROLLER :conventional
SPECIFICATION :Spindle diameter 250 mm, X 5000 mm, Y 4150 mm, Z 2000 mm, W 1600 mm, Bed height 600 mm, Bed guideways width 2500 mm, Main motor power 77 kW, Overall dimensions LxWxH 14300x6400x9350 mm, Weight 105300 kg

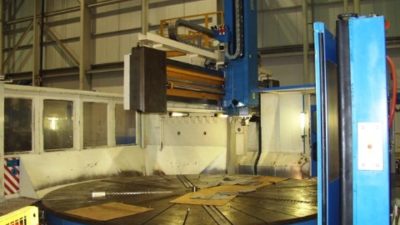

WALDRICH COBURG CNC Plano Mill GMF450 - 24m x 5.5m capacity 3 axis universal, SIEMENS control (1988)
MACHINE REF :11000
Machines For Sale — . Mill, Plano/Gantry Type CNC
MAKE :WALDRICH COBURG CNC Plano Mill
MODEL :GMF450 - 24m x 5.5m capacity 3 axis universal, SIEMENS control
YEAR OF MANUFACTURE :1988
CONTROLLER :SIEMENS 8M
SPECIFICATION :Main Technical Specifications: X-axis travel :24500mm Y-axis travel :5500mm Z-axis travel :1400mm Spindle diameter :220mm Ram size :500x500mm Caracteristic of spindle: 2000 RPM,ISO 60 Control system :Siemens Sinumeric 8M Weight limit :100 tons capacity Working piece width-5500mm Working piece height -2200mm Tools:-universal spindle unit UFU H250 SZ 410 F17 -horizontal spindle unit WFU 800 SZ 450 F17 -vertical spindle unit VL 300 SZ 55 F17 Chip conveyer on x-axis on both side Total power for machine :200kW Dimensions of the machine (LxWxH):35,0×12,0×6,5m
DESCRIPTION :EXCELLENT CONDITION UNDER POWER IN FACTORY EXW PRICE MACHINES WEIGHT APPROX 320TONS, 13 TRUCKS AND ONE OVERSIZE FLATBED NEEDED
USED MACHINES INVENTORY
Explore our machine inventory and feel free to contact us
ZIMMERMANN CNC Plano Mill FZ 37, table 3000x4000 mm, XYZAC, 4000/3000/1250 mm/+-110 °/+-300 ° (2002)
MACHINE REF :15280
Machines For Sale — . Mill, Plano/Gantry Type CNC
MAKE :ZIMMERMANN CNC Plano Mill
MODEL :FZ 37, table 3000x4000 mm, XYZAC, 4000/3000/1250 mm/+-110 °/+-300 °
YEAR OF MANUFACTURE :2002
CONTROLLER :SIEMENS SINUMERIK 840D
FURTHER SPECIFICATION :WORKING RANGE X-axis travel 4000 mm Y-axis travel 3000 mm Z-axis travel 1250 mm rotating range A-axis from 110 ° rotating range A-axis up to -110 ° rotating range C-axis from 300 ° rotating range C-axis up to -300 ° distance spindle nose - table surface (max.) 2030 mm PORTAL / BRIDGE distance between columns 4134 mm TABLE table surface (left-right) 3000 mm table surface (front-back) 4000 mm MILLING SPINDLE / HEAD spindle type orthogonal head - mode of operation automatic spindle revolutions (max) 18000 /min tool fixture HSK A63 drive power S6 40% 28 kW AXIS DRIVES feed velocity (max) 20000 mm/min rapid traverse 25000 mm/min TOOL MAGAZINE magazin type rack number of positions 30 DIMENSIONS / WEIGHTS space requirements -left/right- 6900 mm space requirements -front/back- 9235 mm total height 4891 mm total weight approx. 42500 kg
