Machines For Sale

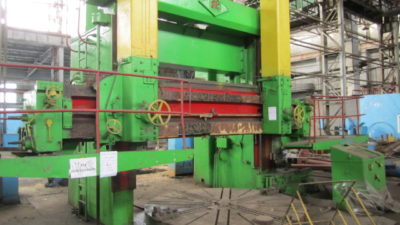

KOLOMNA Ram Type VTL KU514F1, capacity DxH 4000x2500 (1990)

MACHINE REF :5257

Machines For Sale — . Borer, Vertical/VTL Ram Type

MAKE :KOLOMNA Ram Type VTL

MODEL :KU514F1, capacity DxH 4000x2500

YEAR OF MANUFACTURE :1990

CONTROLLER :conventional

SPECIFICATION :Max workpiece diameter 4000 mm, Max workpiece height 2500 mm, Max workpiece weight 100 t, Faceplate diameter mm 4000 Faceplate speeds range 0.37-34.0 rpm, Main motor power 118 kW Overall dimensions, LxWxH 6100x10400x8400 mm, Height over floor 6920 mm, Machine weight 134.2 mm

FURTHER SPECIFICATION :KOLOMNA KU514F1 Year of manufacture 1990 Specifications: Diameter of workpiece, mm 4000 Height of workpiece, mm 2500 The mass of the workpiece, 100.0 tons Faceplate diameter mm 4000 The maximum length of the slide, mm: - The upper-right turning in 1600 - The upper-left combined. 1600 The greatest moment of cutting the faceplate, kN.m 315 Limits of vertical and horizontal feeds, mm / min 0.043 ... 352 Accelerated movement speed slides and supports, mm / min 3125 Drive power (at least), 118 kW Overall dimensions, mm: - Length 6100 - Width 10 400 - Height 8400 - Height above floor level 6920 Machine weight with electrical equipment, tons 134.2

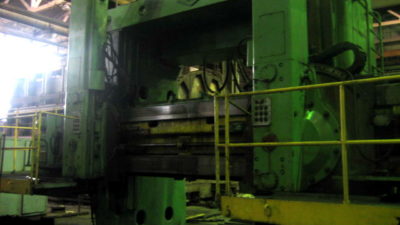

KOLOMNA Ram Type VTL, good condition 1540, turning capacity DxL 4000x2000 mm (1970)

MACHINE REF :6293

Machines For Sale — . Borer, Vertical/VTL Ram Type

MAKE :KOLOMNA Ram Type VTL, good condition

MODEL :1540, turning capacity DxL 4000x2000 mm

YEAR OF MANUFACTURE :1970

CONTROLLER :conventional

SPECIFICATION :Maximum workpiece diameter 4000 mm Maximum workpiece height 2000 mm Maximum workpiece weight 63000kg Faceplate diameter 4000 mm Faceplate speeds range 0,52-48,7 rpm Main motor power 125 kW Overall dimensions, LxWxH 5900x10100x7200 mm Weight of the machine 105000 kg

FURTHER SPECIFICATION :KOLOMNA 1540 Ram Type VTL KOLOMNA 1540 Maximum workpiece diameter 4000 mm Maximum workpiece height 2000 mm Maximum workpiece weight 63000kg Faceplate diameter 4000 mm Faceplate speeds range 0,52-48,7 rpm Maximum faceplate torque 160 kNm Maximum cross beam vertical travel 1870 mm Maximum vertical rams vertical travel 1250 Maximum vertical rams horizontal travel 2300 Maximum vertical supports turning angle +30/-15 degree Maximum vertical supports vertical and horizontal feeds range 0.059-470mm/min Vertical rams and supports fast travel speed 2715 mm/min Cross beam fast travel speed 2715 mm/min Main motor power 125 kW Overall dimensions, LxWxH 5900x10100x7200 mm Height over the floor 6000 mm Weight of the machine 105000 kg

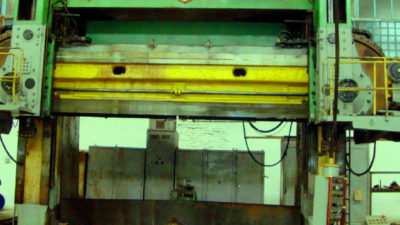

KOLOMNA Ram Type VTL, very nice 1532, capacity DxH 3200x2000 mm (1975)

MACHINE REF :5848

Machines For Sale — . Borer, Vertical/VTL Ram Type

MAKE :KOLOMNA Ram Type VTL, very nice

MODEL :1532, capacity DxH 3200x2000 mm

YEAR OF MANUFACTURE :1975

CONTROLLER :conventional

SPECIFICATION :Max workpiece diameter without side head 3400 mm, Max workpiece diameter with side head 3200 mm, Max workpiece height 2000 mm, Max workpiece weight 16 t, Faceplate diameter 3080 mm, Faceplate speeds range 0.5-31 rpm, Max cross beam vertical travel 1450 mm, Cross beam travel speed 425 mm/min, Overall dimensions LxWxH 4900x8950x7000 mm, Weight 67.4 t

DESCRIPTION :Currently under conservation. Price is on FOB basis.

KOLOMNA Semi Automatic Gear Hobber 5A342, gear dia 2000 mm, module 20, tailstock, change gears (1972)

MACHINE REF :13731

Machines For Sale — . Gear, Hobber

MAKE :KOLOMNA Semi Automatic Gear Hobber

MODEL :5A342, gear dia 2000 mm, module 20, tailstock, change gears

YEAR OF MANUFACTURE :1972

CONTROLLER :conventional
