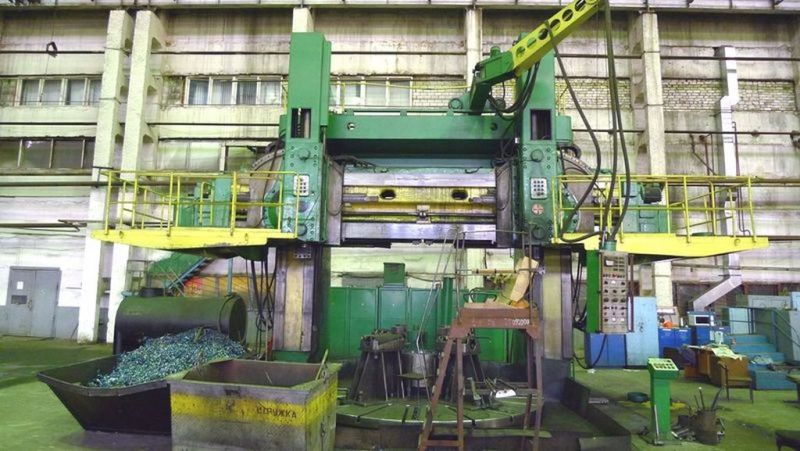

KOLOMNA Ram Type VTL KU514F1, capacity DxH 4000×2500 (1990)



MACHINE REF :5257

Machines For Sale — . Borer, Vertical/VTL Ram Type

MAKE :KOLOMNA Ram Type VTL

MODEL :KU514F1, capacity DxH 4000×2500

YEAR OF MANUFACTURE :1990

CONTROLLER :conventional

SPECIFICATION :Max workpiece diameter 4000 mm,
Max workpiece height 2500 mm,
Max workpiece weight 100 t,
Faceplate diameter mm 4000
Faceplate speeds range 0.37-34.0 rpm,
Main motor power 118 kW
Overall dimensions, LxWxH 6100x10400x8400 mm,
Height over floor 6920 mm,
Machine weight 134.2 mm

FURTHER SPECIFICATION :KOLOMNA KU514F1
Year of manufacture 1990
Specifications:
Diameter of workpiece, mm 4000
Height of workpiece, mm 2500
The mass of the workpiece, 100.0 tons
Faceplate diameter mm 4000
The maximum length of the slide, mm:
– The upper-right turning in 1600
– The upper-left combined. 1600
The greatest moment of cutting the faceplate, kN.m 315
Limits of vertical and horizontal feeds, mm / min 0.043 … 352
Accelerated movement speed slides and supports, mm / min 3125
Drive power (at least), 118 kW
Overall dimensions, mm:
– Length 6100
– Width 10 400
– Height 8400
– Height above floor level 6920
Machine weight with electrical equipment, tons 134.2

Categories: ,

Description

KOLOMNA Ram Type VTL KU514F1, capacity DxH 4000×2500 (1990)



Price: Write Us

Date of Offer :
Location : Russian Federation
Quantity : 1
Availability : 02 Sep 2011
