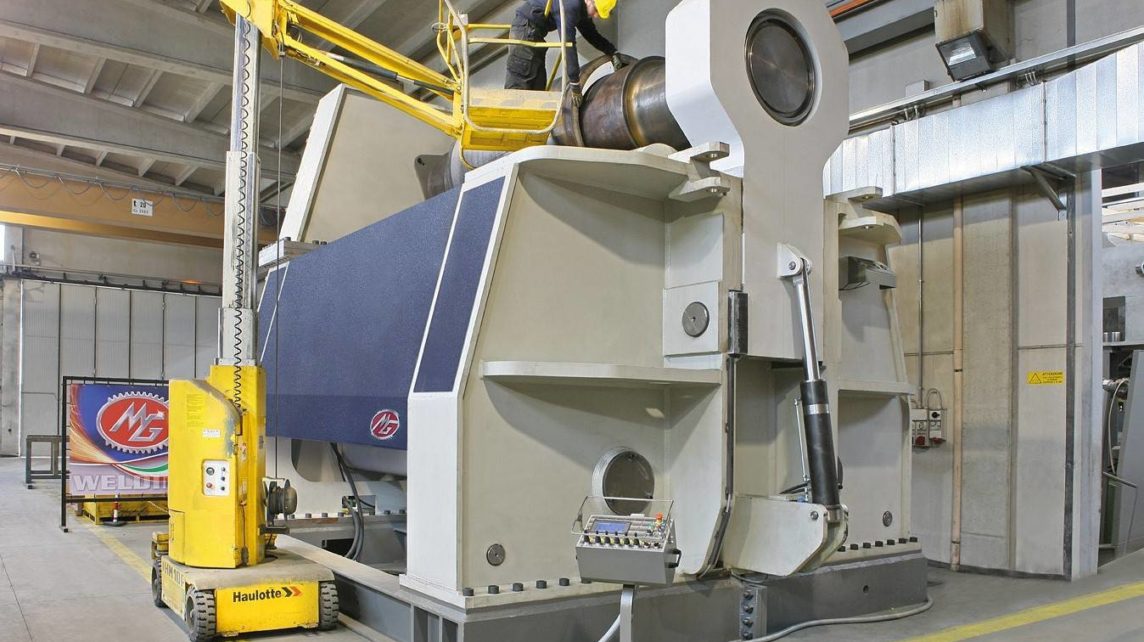

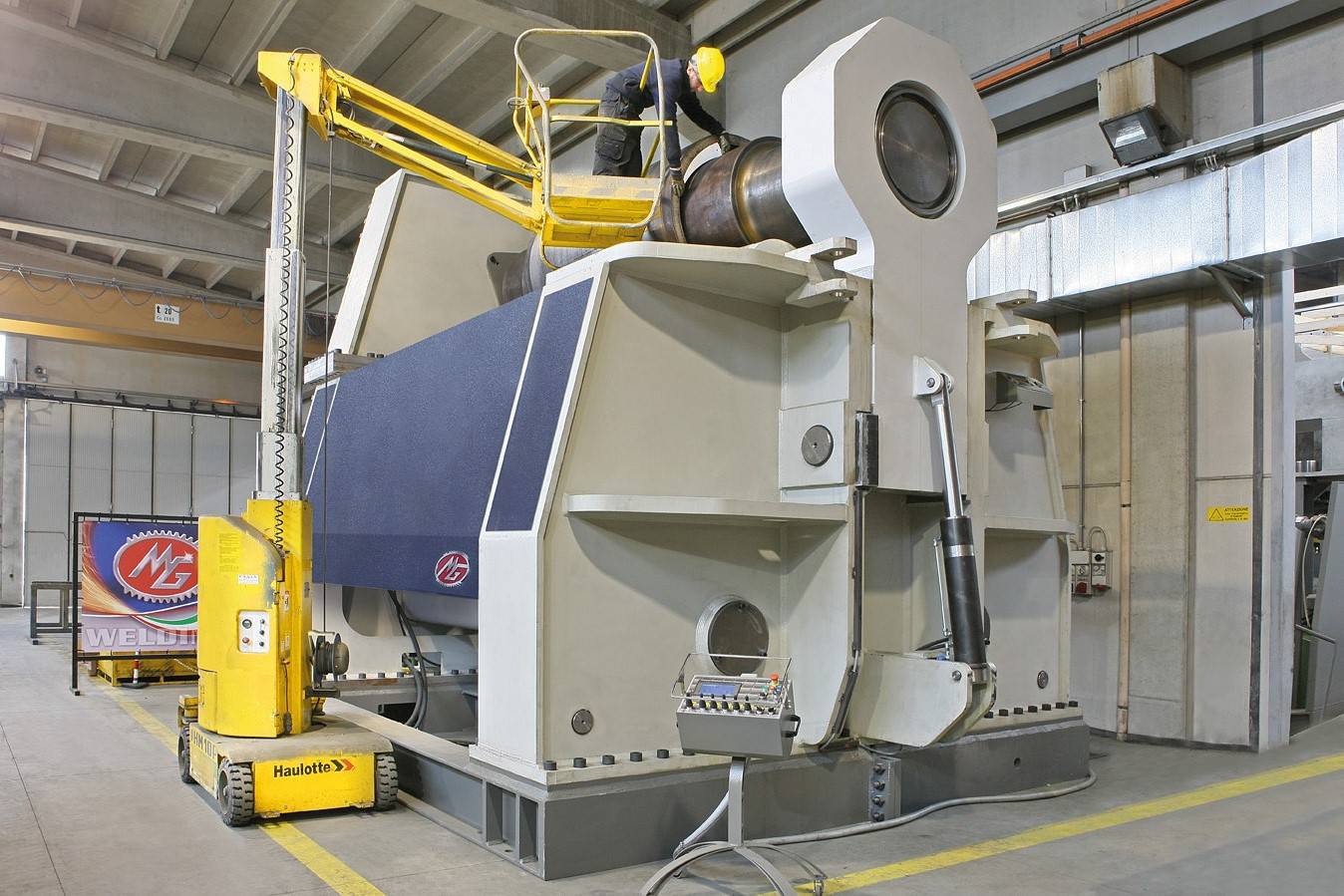

MG 3-Rolls Plate Bending Rolls, brand new (2017), ex-stock 3140 V, capacity 140×3100 mm (2017)

Return to Previous Page

Product Description

ARSENAL Universal Mill in very good condition, visible under power FU321, table 320x1320 mm, XYZ 950x320x460 mm, lots of attachments, DRO
MG Angle Roll, fully reconditioned AR360, 360 mm shaft (2004)

MG 3-Rolls Plate Bending Rolls, brand new (2017), ex-stock 3140 V, capacity 140×3100 mm (2017)



MACHINE REF :13650

Machines For Sale — . Sheet Metal & Plate, Bending Rolls

MAKE :MG 3-Rolls Plate Bending Rolls, brand new (2017), ex-stock

MODEL :3140 V, capacity 140×3100 mm

YEAR OF MANUFACTURE :2017

SPECIFICATION :Usefull length 3100mm
Top roll 940mm
Side rolls 800mm
HP220
rolling capacity 140mm
Pre-bending 120mm

FURTHER SPECIFICATION :Installed power HP. 220
Rolls Table length mm. 3,100
Rolling capacity mm 140
Pre-Bending Capacity mm 120
Top roll diameter mm. 940
Side rolls diameter mm. 800
Rolls Rotation speed -proportinal mt/min 0 – 5
Width mm 4,740
Total Length mm 10,053
Height mm 5,118
Weight Kg. 148,000
Voltage/Frequency/phases 415 V – 3 – 50hz
Tilting of Side Rolls for cones Degrees max 2°
Bending Force Tons 2400
Total Torque Kg/DaN 85,000
Rolls 42CrMo 4
Hardening HRC 55-60
No. Of Driven rolls 3
Rolls Drive Hydro-motors 3
The max performances are referred to shells of diameter equal or larger than 5 times the top roll diameter and with material with a yield point within R = 260 N / mm².

Categories: ,

Description

MG 3-Rolls Plate Bending Rolls, brand new (2017), ex-stock 3140 V, capacity 140×3100 mm (2017)



Price: Write Us

Date of Offer :
Location : Europe
Quantity : 1
Availability : 08 Mar 2018
