Product Description
NILES CNC VTL SC2000 – 2,2m x 2,4mm capacity completely Rebuilt in 2020 (2020)
MACHINE REF :15762
Machines For Sale — . Borer, Vertical/VTL Ram Type CNC
MAKE :NILES CNC VTL
MODEL :SC2000 – 2,2m x 2,4mm capacity completely Rebuilt in 2020
YEAR OF MANUFACTURE :2020
CONTROLLER :Fanuc OiTF
SPECIFICATION :Technical characteristics:
Maximum working diameter: 2.200 mm
Bed diameter: 1.800 mm
Maximum height of work piece under cross rail: 2.400mm
Vertical slide travel ( Z axis): 1.500mm
Feed range: 0.1 4.000mm/min
Tool magazine SCHIESS with 12 posts
Vertical main motor Fanuc: 37 kw AC
Rotation range in bed: 1 140 rot./min
Machine dimensions : 3.600 x 4.700 x 7.200 mm
Total weight of machine: 38.000 kg
Technical equipments:
Vertical feed box ZF 2K 300
Centralized lubrication equipments AZETA
Hydraulic station with ATOS, BERAMA, EMMEGGI components.
Electric equipment and CNC Fanuc 0i TF.
Ball screw STAR REXROTH make.
Main vertical motor Fanuc 37kw AC interconnected by automatic feed box ZF 2K300 type.
Feed servomotors BRASHLESS with ZF PG 500 reducers, and JACOB clutches.
Micro switch for reference and drive EUCHNER.
SCHIESS tool magazine, with 12 pockets.
Protection covers for cross rail guide ways.
Electro-hydraulic elevator for the operator.
Accessories:
4 chuck jaws;
1 set of leveling feet.
12 tool holders set.
Special accessories could be provided (only on request):
4 oscillating chuck jaws with 8 assistant points, ROTOMORSE type.
DESCRIPTION :FOR SALE

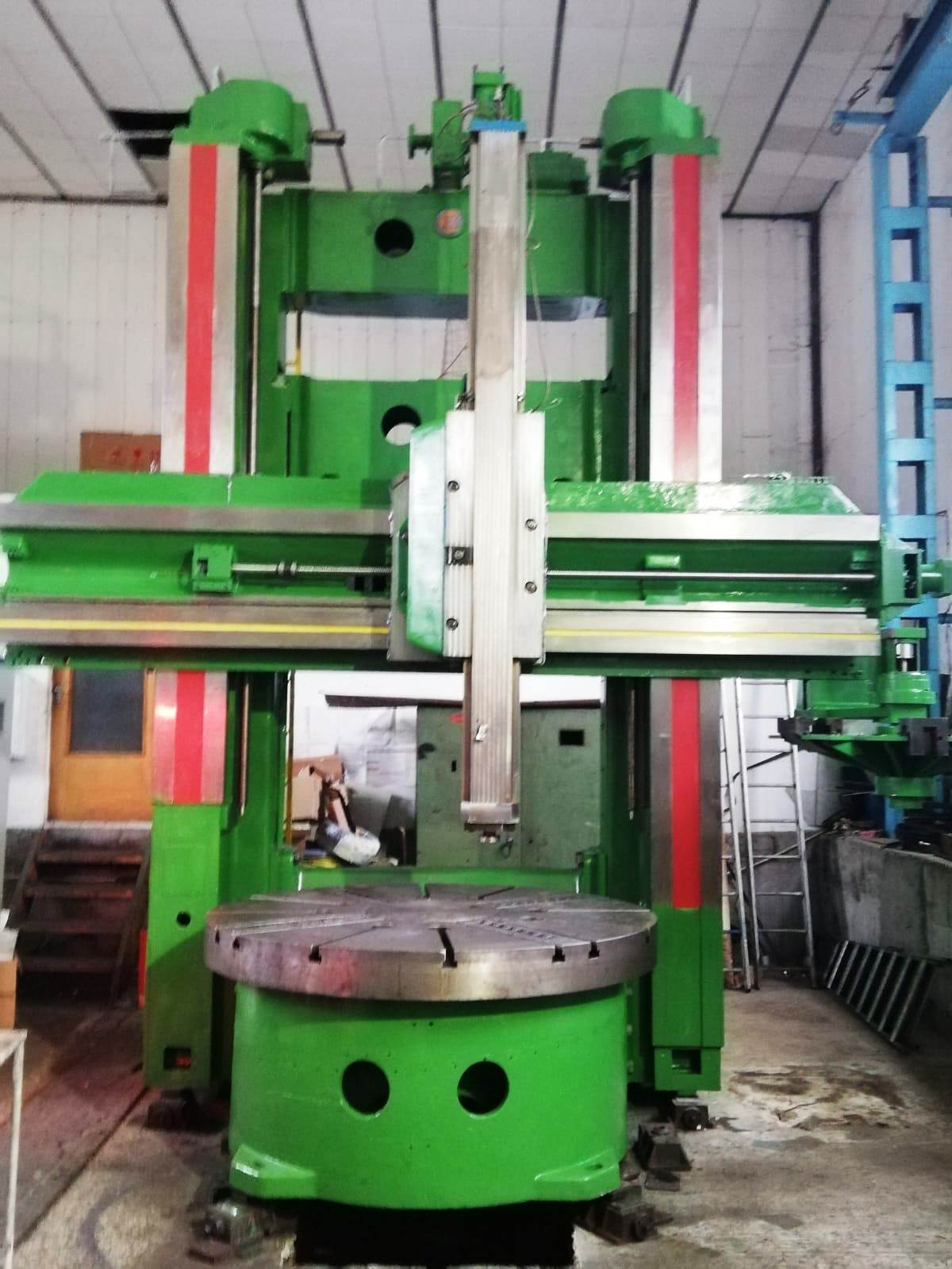

Vertical lathe NILES SC2000 CNC FANUC 0i-TF , complete rebuild 2020
SPECIAL WORKPIECE HEIGHT, 12 TOOLS MAGASINE
ALL NEW COMPONENTS APART BED FRAME
NILES lathe type SC 2000 CNC FANUC 0i-TF is destined for turning of high work pieces(maximum 2400mm), in CNC mode.

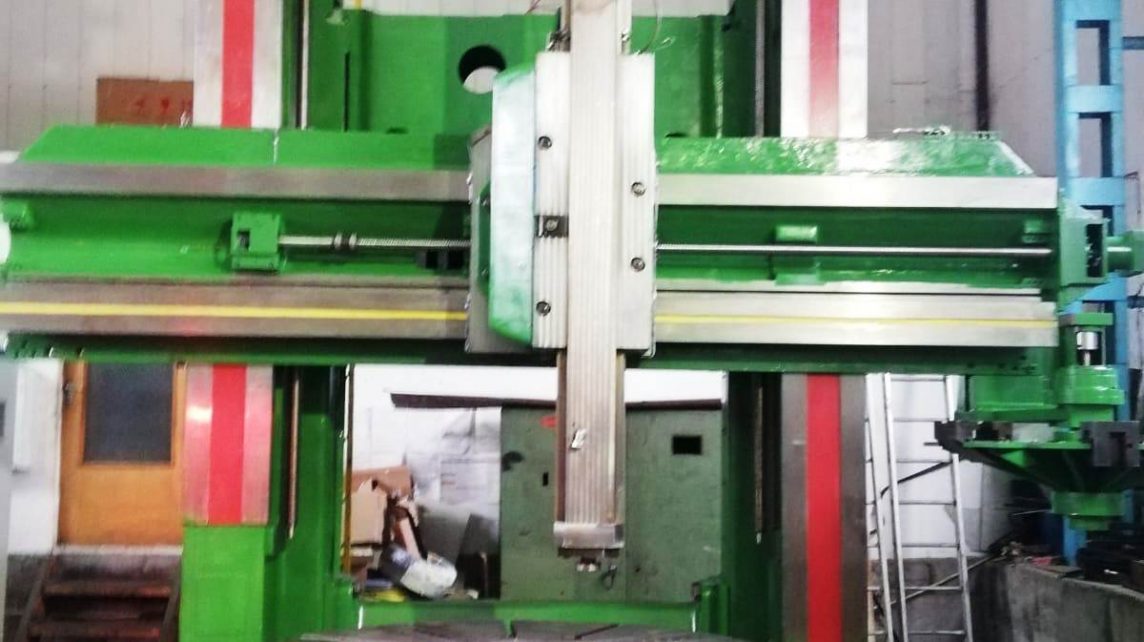

The machine bed frame is closed by two fixed cross rails between columns.
Columns are over-height with 1.000 mm and has ground guide ways.
Machine bed has hydrostatic lifting and can accept work pieces of 20 tones.
Main drive of the bed is made by a 37 kw AC vertical Fanuc motor engaged by automatic feed box type ZF 2K 300 and large power belt.
Right vertical support is provided with increased section of coulisse 235×230 mm and vertical drive Z=1.500 mm.
The feed drive of kinematic chains on X and Z axis is made with ball screw 50 x 10 mm diameter and Fanuc servomotors, that are engaged with reducers type PG 500 ZF Germany.
Bed of the machine has hydraulic lifting and central pivot with precision bearing.
The machine is fitted with tool magazine SCHIESS type, and has 12 pockets for different tool holders.
Tool magazine is mounted on the right part of cross rail.
For working at altitude, the machine is provided with a special elevator, that lifts on the vertical together with the Fanuc control panel.
Hydraulic station has the following functions: elevation of the bed, lubrication, blocking of cross rail and dynamic equilibration of vertical coulisse. The hydraulic components are made by ATOS Italy.
Machine also is fitted with:
-Chip conveyor ;
-Cooling device;
-Fairing for cooling device.
Description
NILES CNC VTL SC2000 – 2,2m x 2,4mm capacity completely Rebuilt in 2020 (2020)
Price: Write Us
Location : Europe
Quantity : 1
Availability : 06 Mar 2021
