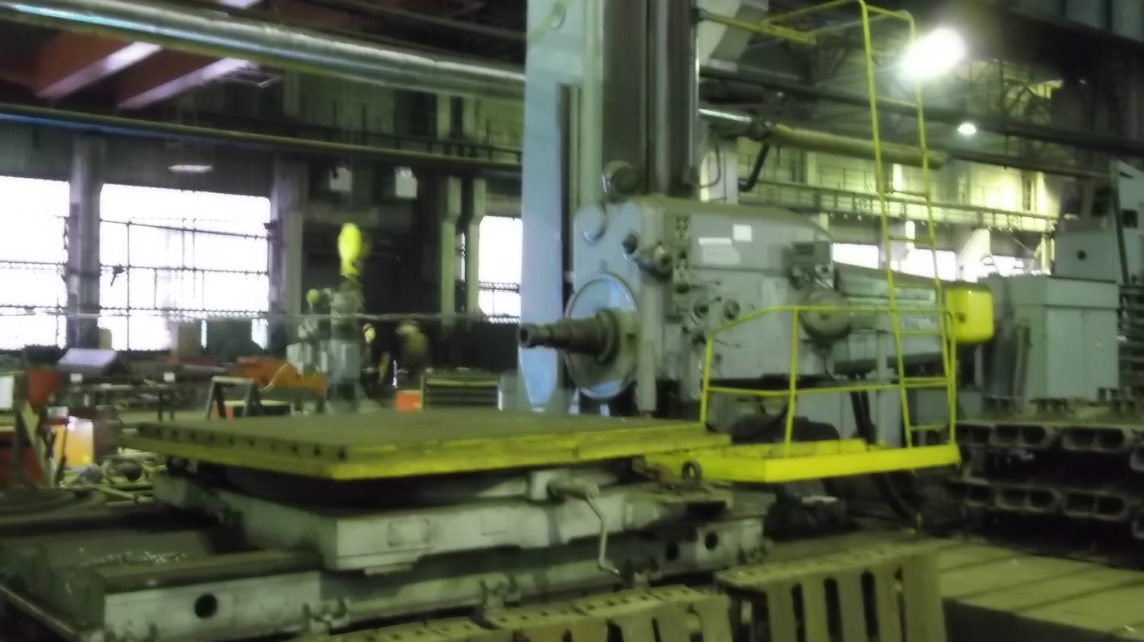

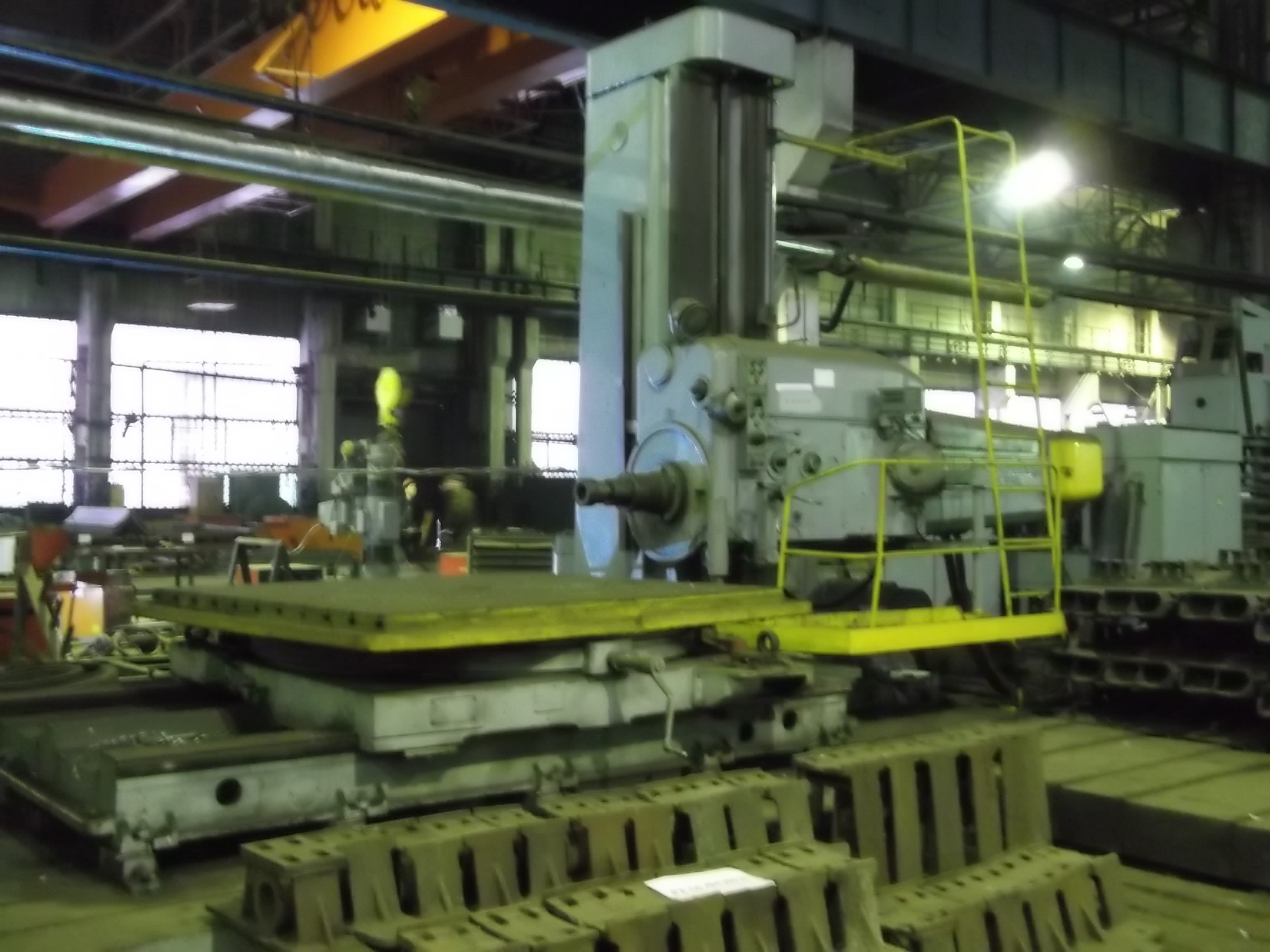

SVERDLOV Floor Type Horizontal Borer 2E656R, spindle 160 mm, table 2500×2000, X 3200 mm



MACHINE REF :5900

Machines For Sale — . Borer, Horizontal Floor

MAKE :SVERDLOV Floor Type Horizontal Borer

MODEL :2E656R, spindle 160 mm, table 2500×2000, X 3200 mm

CONTROLLER :conventional

SPECIFICATION :Spindle dia 160 mm
Spindle taper M80
Table size, LxW 2500×2000 mm
Base plate size, LxW 4660×4230 mm
Travels X/Y/Z/W 3200/2000/1000/1250 mm
Counter column rest travel 1850 mm
Counter column slide travel 1000 mm
Faceplate cross slide travel 200 mm
Spindle speeds range 7,5-900 rpm
Faceplate speeds range 7,5-190 rpm
Main motor power 17 kW
Table overall dimensions, LxWxH 3700x3200x850 mm
Overall dimensions, LxWxH 11500x8100x6000 mm
Table weight 10 t
Weight of the machine 48,6 t

FURTHER SPECIFICATION :SVERDLOV 2E656R Floor Type HBM
Spindle dia 160 mm
Spindle taper M80
Table size, LxW 2500×2000 mm
Base plate size, LxW 4660×4230 mm
Travels X/Y/Z/W 3200/2000/1000/1250 mm
Counter column rest travel 1850 mm
Counter column slide travel 1000 mm
Faceplate cross slide travel 200 mm
Spindle speeds range 7,5-900 rpm
Faceplate speeds range 7,5-190 rpm
Feeds range, mm/min:
– spindle head, front (spindle) column, table and faceplate cross slide 1-750
– spindle 2-150
Speed travels, mm/min:
– front (spindle) column 2500
– spindle head 2500
– spindle 3000
– faceplate cross slide 1100
– counter column rest & slide 1500
– table 2500
Maximum boring dia, mm:
– with spindle 400
– with faceplate 700
Threads range:
– metrics, pitch 1-20 mm
– imperials, pitch 3-20 tpi
Maximum workpiece weight, t:
– on base plate 150
– on table 12
Main motor power 17 kW
Table overall dimensions, LxWxH 3700x3200x850 mm
Overall dimensions, LxWxH 11500x8100x6000 mm
Table weight 10 t
Weight of the machine 48,6 t

Categories: ,

Description

SVERDLOV Floor Type Horizontal Borer 2E656R, spindle 160 mm, table 2500×2000, X 3200 mm



Price: Write Us

Date of Offer :
Location : Russian Federation
Quantity : 1
Availability : 04 Oct 2012
