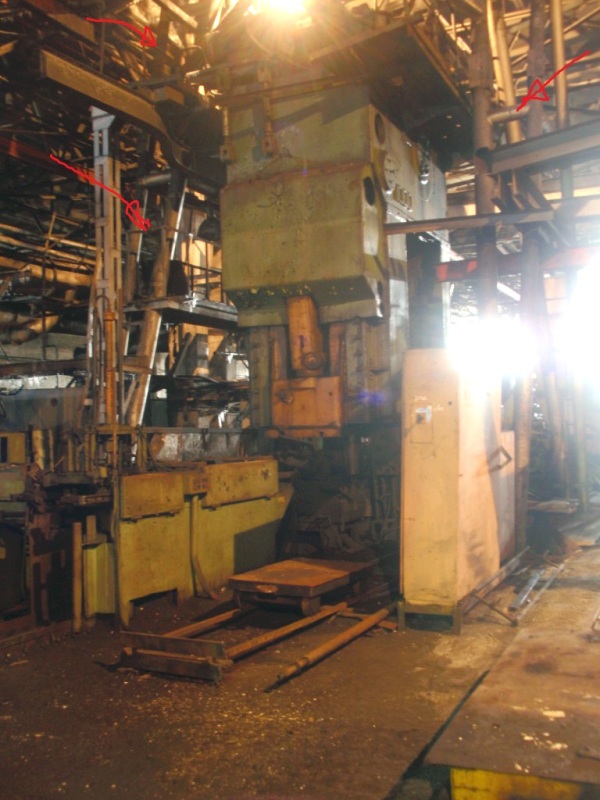

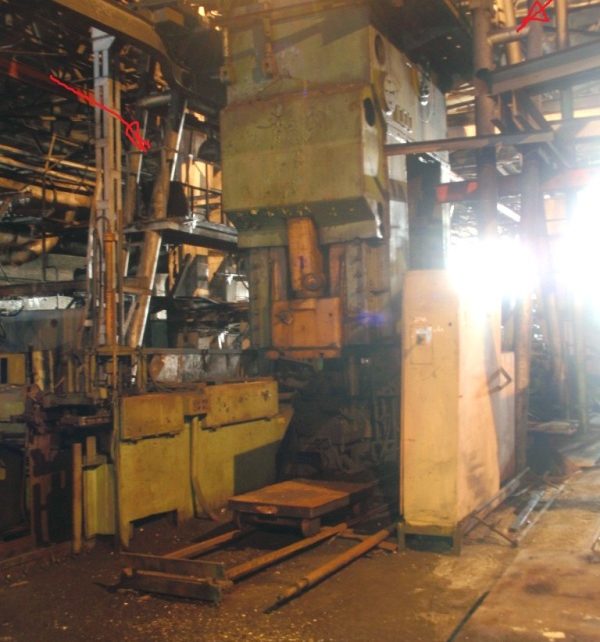

VORONEZH Trimming Press with Vertical & Side Rams K7640, effort 1000/315 t, table 1500×1500 mm (1983)



MACHINE REF :5761

Machines For Sale — . Press, Trimming

MAKE :VORONEZH Trimming Press with Vertical & Side Rams

MODEL :K7640, effort 1000/315 t, table 1500×1500 mm

YEAR OF MANUFACTURE :1983

CONTROLLER :conventional

SPECIFICATION :Nominal effort of vertical ram 1000 t,
Nominal effort of side ram 315 t,
Vertical ram stroke 400 mm,
Side ram stroke 160 mm,
Number of strokes of vertical ram per min 16
Number of strokes of side ram per min 16
Table size 1500×1500 mm,
Vertical ram size 1250×1250 mm,
Main motor power 80 kW,
Overall dimensions LxWxH 4195x3800x8005 mm,
Height over floor 7010 mm,
Weight 99,2 t

FURTHER SPECIFICATION :VORONEZH K7640 Trimming Press with Vertical & Side Rams
Nominal effort of vertical ram 1000 t,
Nominal effort of side ram 315 t,
Vertical ram stroke 400 mm,
Side ram stroke 160 mm,
Number of strokes of vertical ram per min 16
Number of strokes of side ram per min 16
Max distance b/n table and vertical ram in its upper position 950 mm,
Max distance b/n table and side ram in its upper position 700 mm,
Adjustment of distance b/n table and vertical ram 200 mm,
Adjustment of distance b/n table and side ram 100 mm,
Table size 1500×1500 mm,
Vertical ram size 1250×1250 mm,
Side ram size 620×950 mm,
Bottom plate thickness 220 mm,
Main motor power 80 kW,
Overall dimensions LxWxH 4195x3800x8005 mm,
Height over floor 7010 mm,
Weight 99,2 t

DESCRIPTION :In good working condition.
Price is on FCA basis.

Categories: ,

Description

VORONEZH Trimming Press with Vertical & Side Rams K7640, effort 1000/315 t, table 1500×1500 mm (1983)



Price: Write Us

Date of Offer :
Location : Russian Federation
Quantity : 1
Availability : 20 Sep 2012
