Showing 3841–3852 of 8624 results
Quick View
,
NOVOSIBIRSK Floor Type Horizontal Borer 2B660, spindle dia 220 mm, X 6 m (1975)

NOVOSIBIRSK Floor Type Horizontal Borer 2B660, spindle dia 220 mm, X 6 m (1975)



MACHINE REF :6418

Machines For Sale — . Borer, Horizontal Floor

MAKE :NOVOSIBIRSK Floor Type Horizontal Borer

MODEL :2B660, spindle dia 220 mm, X 6 m

YEAR OF MANUFACTURE :1975

CONTROLLER :conventional

SPECIFICATION :Spindle diameter 220 mm, Travels X/Y/Z/W/U 6000/3000/600/1800/550 mm, Faceplate diameter 1150 mm, Max boring diameter 1800 mm, Main motor power 55 kW, Overall dimensions LxWxH 11350x11280x7800 mm, Weight 142 t

DESCRIPTION :No rotary table available. Price is on FCA basis.
Quick View
,

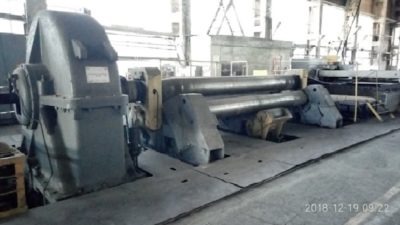

NOVOSIBIRSK Four Rolls Plate Bending Rolls LN-448, capacity 16×6300 mm

NOVOSIBIRSK Four Rolls Plate Bending Rolls LN-448, capacity 16x6300 mm



MACHINE REF :14013

Machines For Sale — . Sheet Metal & Plate, Bending Rolls

MAKE :NOVOSIBIRSK Four Rolls Plate Bending Rolls

MODEL :LN-448, capacity 16x6300 mm

CONTROLLER :conventional

SPECIFICATION :Max sheet thickness 16 mm, Max sheet width 6300 mm, Min bending radius 380 mm, Bending speed (angular) 6 m/min, Rolls diameters: - upper 500 mm, - lower 450 mm (hydraulic drive), - side 420 mm mechanical drive), Rolls crowning length 4050 mm, Upper roll inclination angle 2,5 dgrs (2 dgr 30 min), Side rolls travelling speed 0,158 m/min, Max distance b/n rolls 120 mm, Main motor power 80 kW, Overall dimensions LxWxH 11130x3900x2458+1360 mm Weight 109 t
Quick View
,
NOVOSIBIRSK Heavy Duty Rotary Table – ELOADED HC-21, size 3600×3600 mm, max load 50 t

NOVOSIBIRSK Heavy Duty Rotary Table - ELOADED HC-21, size 3600x3600 mm, max load 50 t



MACHINE REF :13395

Machines For Sale — . Tables, Rotary Conventional

MAKE :NOVOSIBIRSK Heavy Duty Rotary Table - ELOADED

MODEL :HC-21, size 3600x3600 mm, max load 50 t

CONTROLLER :conventional
Quick View
,
NOVOSIBIRSK Horizontal Borer – FCA PRICE 2B660F1, spindle 220 mm, work area 5000×8100 mm, XY 6000×3000 mm, weight 142 t (1974)

NOVOSIBIRSK Horizontal Borer - FCA PRICE 2B660F1, spindle 220 mm, work area 5000x8100 mm, XY 6000x3000 mm, weight 142 t (1974)



MACHINE REF :10508

Machines For Sale — . Borer, Horizontal Floor

MAKE :NOVOSIBIRSK Horizontal Borer - FCA PRICE

MODEL :2B660F1, spindle 220 mm, work area 5000x8100 mm, XY 6000x3000 mm, weight 142 t

YEAR OF MANUFACTURE :1974

CONTROLLER :conventional
Quick View
,
NOVOSIBIRSK Hydraulic Press, not visible under power P305A, capacity 30000 t, work surface 2500×3000 mm (1982)

NOVOSIBIRSK Hydraulic Press, not visible under power P305A, capacity 30000 t, work surface 2500x3000 mm (1982)



MACHINE REF :10347

Machines For Sale — . Press, Hydraulic

MAKE :NOVOSIBIRSK Hydraulic Press, not visible under power

MODEL :P305A, capacity 30000 t, work surface 2500x3000 mm

YEAR OF MANUFACTURE :1982

SPECIFICATION :Hydraulics needs revision. Missings in electrics.

FURTHER SPECIFICATION :NOVOSIBIRSK P305A Hydraulic Press Work pressure 30000 t, Number of pressure steps 2, Nominal pressure of the steps: - 1st step 15000 t, - 2nd step 30000 t, Distance b/n columns 3500x3500 mm, Open height 4650 mm, Max traverse stroke 1250 mm, Speeds, mm/sec: - work stroke 0,085-0,67 - work stroke, on unfolding (extending) up to 20, - down/upstroke up to 30, Table work surface 2500x3000 mm, Table travel, oneway 3500 mm, Total power requirement 85 kW, Required space 16140x19570 mm, Height over floor 9290 mm, Height under floor 9900 mm, Total height 19190 mm, Weight 2365 t

DESCRIPTION :DISMANTLING INCLUDED.
Quick View
,
NOVOSIBIRSK Planer 7A256, planning capacity 2000×6000 mm, 2off vertical and 2 off horizontal heads

NOVOSIBIRSK Planer 7A256, planning capacity 2000x6000 mm, 2off vertical and 2 off horizontal heads



MACHINE REF :6308

Machines For Sale — . Planer

MAKE :NOVOSIBIRSK Planer

MODEL :7A256, planning capacity 2000x6000 mm, 2off vertical and 2 off horizontal heads

CONTROLLER :conventional

SPECIFICATION :Working table surface dimensions (widthxlength) 1800х6000mm Planning width 2000mm Planning length 6000mm Distance between columns 2150mm Max. weight of workpiece 20t No. of planning heads: -Horizontal 2 -Vertical 2 Overall dimensions (LxWxH) 14140х6000х4852 mm Weight of the machine 68663 kg

FURTHER SPECIFICATION :NOVOSIBIRSK 7A256 Planer Working table surface dimensions (width x length) 1800х6000mm Planning width 2000mm Planning length 6000mm Distance between columns 2150mm Max. weight of workpiece 20t No. of planning heads: -Horizontal 2 -Vertical 2 Overall dimensions with remote units and electrical equipment (length x width x height) 14140х6000х4852mm Weight of the machine 68663kg

DESCRIPTION :Price is on FCA basis.
Quick View
,
NOVOSIBIRSK Planer with grinding attachment NS8, table 3200×8000 mm, height 3160 mm (1973)

NOVOSIBIRSK Planer with grinding attachment NS8, table 3200x8000 mm, height 3160 mm (1973)



MACHINE REF :2893

Machines For Sale — . Planer

MAKE :NOVOSIBIRSK Planer with grinding attachment

MODEL :NS8, table 3200x8000 mm, height 3160 mm

YEAR OF MANUFACTURE :1973

CONTROLLER :conventional

SPECIFICATION :Table working surface WxL 3200x8000 mm, Max workpiece work width 3500 mm, Distance b/n columns 3600 mm, Max distance b/n table surface and cross beam 3160 mm, Max workpiece weight 70 t, Spindles speeds range 34-1700 rpm Overall dimensions LxWxH 19100x8165x9610 mm, Weight of the machine 145 t
Quick View
,
NOVOSIBIRSK Plano Mill UF-0658, table size 1600×7500 mm (1974)

NOVOSIBIRSK Plano Mill UF-0658, table size 1600x7500 mm (1974)



MACHINE REF :4831

Machines For Sale — . Mill, Plano/Gantry Type

MAKE :NOVOSIBIRSK Plano Mill

MODEL :UF-0658, table size 1600x7500 mm

YEAR OF MANUFACTURE :1974

CONTROLLER :conventional

SPECIFICATION :Table size WxL 1600x7500 mm, Machine weight 98 t

DESCRIPTION :2 off tables; 2 off heads (vertical and horizontal).
Quick View
,
NOVOSIBIRSK Rotary Table HC-3A, capacity 50 t, size 3600×3600 mm, weight 40 t

NOVOSIBIRSK Rotary Table HC-3A, capacity 50 t, size 3600x3600 mm, weight 40 t



MACHINE REF :10972

Machines For Sale — . Tables, Rotary Conventional

MAKE :NOVOSIBIRSK Rotary Table

MODEL :HC-3A, capacity 50 t, size 3600x3600 mm, weight 40 t

CONTROLLER :conventional

SPECIFICATION :Table size 3600x3600 mm, Max travel 2000 mm, Max table load 50 t, Motor power 9,6 kW, Overall dimensions LxWxH 5700x4250x1350 mm, Weight 40 t
Quick View
,
NOVOSIBIRSK Rotary Table NS-3A, size 3600×3600 mm, load 50 t, weight 40 t (1982)

NOVOSIBIRSK Rotary Table NS-3A, size 3600x3600 mm, load 50 t, weight 40 t (1982)



MACHINE REF :16199

Machines For Sale — . Tables, Rotary Conventional

MAKE :NOVOSIBIRSK Rotary Table

MODEL :NS-3A, size 3600x3600 mm, load 50 t, weight 40 t

YEAR OF MANUFACTURE :1982
Quick View
,
NOVOSIBIRSK Rotary Table PS-3, size 3600×3600 mm

NOVOSIBIRSK Rotary Table PS-3, size 3600x3600 mm



MACHINE REF :6542

Machines For Sale — . Tables, Rotary Conventional

MAKE :NOVOSIBIRSK Rotary Table

MODEL :PS-3, size 3600x3600 mm

CONTROLLER :conventional

SPECIFICATION :Table size 3600x3600 mm, Max table load 50 t, Max table travel 2000 mm, Indexing 10’ Positioning 0, 90, 180, 270, 360 degree, Fast rotation speed 151 degree per min, Motor power 7 kW, Overall dimensions LxWxH 5670x3840x1200 mm, Weight 32330 kg
Quick View
,
O M

O M



MACHINE REF :2316

Machines For Sale — . Borer, Vertical/VTL Turret

MAKE :O M

SPECIFICATION :OM Vertical Turret Lathe (Single Column Open Arm) Table size: 6000 mm Max cutting diameter: 11000 mm Center cutting diameter: 8500 mm Max cutting height: 4700 mm Distance tool holder end and table surface: 4750 mm Year: 1967 Max loading weight: 120 Ton Max cutting power: 5000 Kg Max rev torque: 20500 Kg-m Table speed: 0.25 - 25 rpm Tool bar vertical travel: 2500 mm Tool bar angle degree: +/- 30 degree Tool bar X axis travel: 4300 mm Section of cutting tool: 75 x 75 mm Distance between cross rail end table surface: 5050 mm Tool bar feed rate: 0.075 - 20 mm/rev Tool bar feed step: 32 step Tool bar rapid traverse: 1000 mm/min Tool bar low feed traverse: 100 mm/min Cross rail Up-Down feed traverse: 300 mm/min Column feed traverse: 300 mm/min Table main motor: 120 Kw DC Cross rail feed traverse motor (gear motor): 15 Kw (brake) Column feed traverse motor (gear motor): 7.5 Kw Tool bar rapid traverse motor: 3.75 Kw Support motor (total: 13set): 13 Kw Mach. Max height(H): 13030 mm Net weight of machine: 250 Ton , 1.95 MIL SHAPELINE@AOL.COM
