QUALITY CHINESE MANUFACTURED NEW CNC VTL 6.3m x 3.15m turning capacity - With C axis and MIlling function (2010)

MACHINE REF :3260

Machines For Sale — . Borer, Vertical/VTL Ram Type CNC

MAKE :QUALITY CHINESE MANUFACTURED NEW CNC VTL

MODEL :6.3m x 3.15m turning capacity - With C axis and MIlling function

YEAR OF MANUFACTURE :2010

CONTROLLER :SIEMENS 840D SL

SPECIFICATION :Table diameter mm 5m Max. turning diameter mm 6.3m Max. machining height mm 3150 Max.workpiece weight T 63 Max. torque of table KN-m 100 Speed range of table r/min 0.5-40 Max. cutting force of tool post KN 50 Ram section of milling mm 240*240 Travel horizontal of tool head mm 3750 Vertical travel of tool post mm 1600 Feed range of tool post Mm/min 0.1-2000 Rapid traverse of tool head Mm/min 4000 Travel of cross rail Mm 2800 Speed of cross rail displacement Mm/min 350 Classify location distance of crossrail Mm 200(14 steps) Speed range of milling spindle r/min 1-2000 Max. torque of milling spindle N-m 606 Basic dimension of T-type grooves of table 36 CNC coordinate axes X.Z C Interlocking axes simultaneously 3 axes interlocking X.Z.C Positioning accuracy of tool head Mm 0.005 Positioning repeatability of tool head Mm 0.003 Positioning accuracy of C-axis Sec 3 Positioning repeatability of C-axis Sec 2 Positioning accuracy of tool Mm 0.01 Main motor power Kw 90 Elevation motor power Kw 22 Milling spindle power Kw 16 Weight of machine T 120 Full-losed grading loop Milling spindle taper bore 7:24(ISO50#)

DESCRIPTION :This machine is cnc vertical turning and milling machining center with precision and muti-function, which canrealize 3 axis interconnecting action and work under all-closed mode. Tool head: it can travel along X axis and Z-axis. Anglar milling head and elcric grinding head can be installed on the demand of customers. The tool holder of boring, drilling, reaming and turning from tool magazine automatically will be clamped automatically to boring and milling spindle by hydraulic and dished spring.muti-machining tool magazine of turning and milling. Cross rail: step position; 200mm/step Tablebase: precision scale division and rotary feed besides constant speed turning and milling. There are 3 axes(X.Z.C). Multi function: milling, grinding, drilling, reaming besides the function of vertical lathes. If X-axis and Z axis interlocks, the machine can turn rotary curved surface of all kinds. If X and C interlock, it can mill face cam. If Z and C interlock, it can mill surface cam. If X,Z and C interlock, it can mill cam groove on the rotary curved surface. Boring, drilling and reaming holes of all kinds on surface and circle. Optional parts: workpiece measuring device, tool setting gage and automatic chip conveyor pictures show example machine under construction now. 8 months delivery Payment via TT or LC Price is FOB chinese port excluding packing. OTHER MACHINE OPTIONS AVAILABLE - Sizes, controllers, axes controlled, conventional. Please ask.

QUASER 5 axis Machining Centre MF 630 C

MACHINE REF :14851

Machines For Sale — . Machining Centre, 5-Axis Vertical

MAKE :QUASER 5 axis Machining Centre

MODEL :MF 630 C

SPECIFICATION :Specification Quaser MF 630 C 5 axis machining center year of manufacture 2015 Siemens 828D control system workpiece probe Renishaw OMP40 Specifications : Drive (rpm) S-coupling 12000 S Table diameter (mm) ø 500 Travel in X / Y / Z axis (mm) 800/700/610 Travel in A axis (°) + 30 ~ - 120 C-axis travel (°) 360 (continuous) Maximum workpiece size (mm) ø 630 × 300 Table load (kg) 300 Distance between table surface and spindle face (mm) 25 - 585 Spindle nose distance from center of table to 90 ° (mm) 25 - 585 Rapid feed in X / Y / Z axis (m / min) 32/32/16 Rapid traverse in A axis (m / min) 11.1 C-axis rapid traverse (m / min) 16.6 Acceleration in X / Y / Z axes (m / s2) 3/3/2 Ball screw ø 45 P = 12/12/8 Positioning accuracy (mm) ISO 230-2 JIS 6338 VDI3441 0.008 / 0.004 ± 0.003 / ± 0.002 0.008 / 0.004 Spindle taper MAS 403 BT Cone size SK40 BIG PLUS spindle end (BBT) Spindle speed (rpm) 12000 Shifts in X / Y / Z axes - power SIEMENS (N) 14,137 / 14,137 / 21,206 Direct spindle drive + clutch Spindle diameter (mm) ø 70 Choice of tools system "random" - random selection Number of tools 30 standard Maximum tool diameter (mm) 76.2 Maximum tool diameter when skipping adjacent magazine position (mm) 125 Maximum tool length (mm) 280 Maximum tool weight (kg) 7 CTC (replacement time) ISO10791-9 (s) 4.5 (S) 1 Refrigerant tank capacity (l) 600 Cooling nozzle (l / min; bar) 60; 3.5 Interior rinse (l / min; bar) 60; 3.5 Machine height (mm) 3230 Built-up machine area - W × D (mm) 3705 x 2520 Machine weight (kg) 8750 (30 ATC) Power supply (V / Hz) 400/50 Total power consumption (kVA) 30 (S) ECO Cooler rinsing gun Rinsing of working area chips spiral conveyor Blow head tool

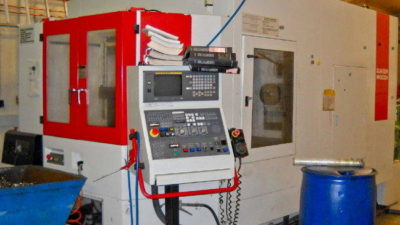

QUASER Machining Centre MV204 (2010, revised 2016), 4th Axis ready

MACHINE REF :13463

Machines For Sale — . Machining Centre, Vertical

MAKE :QUASER Machining Centre

MODEL :MV204 (2010, revised 2016), 4th Axis ready

DESCRIPTION :WITH NEW SPINDLE AND REVISED SLIDEWAYS IN 2016. Invoices available to show work done. Nikken 4th axis removed , but cards in machine, ie 4th axis ready.

Quick Clamps for Press Brake Upper Tools with button, BRAND NEW - VIDEO Suitable For All European/AMADA Type Upper Tooling

MACHINE REF :15820

Machines For Sale — . Tooling, Toolholders

MAKE :Quick Clamps for Press Brake Upper Tools with button, BRAND NEW - VIDEO

MODEL :Suitable For All European/AMADA Type Upper Tooling

SPECIFICATION :Manufactured by OEM supplier for Yawei/Bytronics/Amada/LVD Press Brakes with 6 months replacement guarantee.
