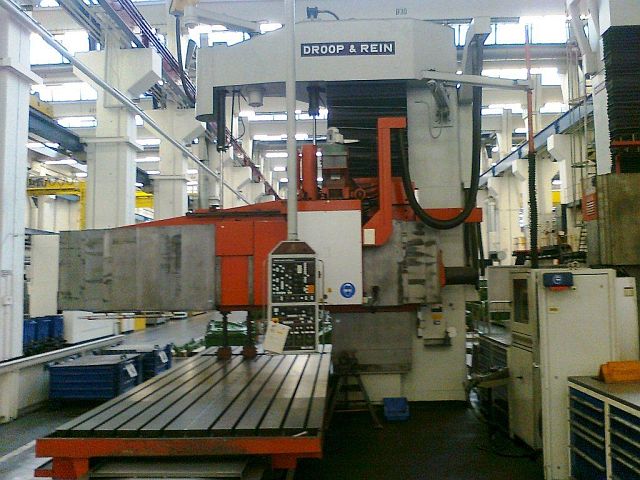

DROOP & REIN CNC Bed Type Mill LFAS 2000 kc N, table 2000×4260 mm, XZW 3300x350x1300 mm (1983)



MACHINE REF :8922

Machines For Sale — . Mill, Bed type CNC

MAKE :DROOP & REIN CNC Bed Type Mill

MODEL :LFAS 2000 kc N, table 2000×4260 mm, XZW 3300x350x1300 mm

YEAR OF MANUFACTURE :1983

CONTROLLER :ATEK NUMATEK 3000

SPECIFICATION :WORKING RANGE -MILLING-
X-axis traverse 3300 mm
Z-axis traverse 350 mm
W-axis traverse 1300 mm
TABLE
table surface (left-right) 4260 mm
table surface (front-back) 2000 mm
WORKING SPINDLE / HEAD
spindle type vertical
spindle revolutions (min) 40 /min
spindle revolutions (max) 2000 /min
spindle diameter 140 mm
tool fixture ISO SK 50
tool fixture ISO SK 60
drive power (max) 33 kW
max. distance spindle clamping surface 1700 mm
sleeve stroke 350 mm
AXIS DRIVES
traverse velocity X (min) 5 mm/min
traverse velocity X (max) 3000 mm/min
traverse velocity Y (min) 5 mm/min
traverse velocity Y (max) 3000 mm/min
rapid traverse X 6000 mm/min
rapid traverse Y 4000 mm/min
ELECTRICAL SPECIFICATIONS
mains voltage 380 V
mains frequency 50 Hz
DIMENSIONS / WEIGHTS
space requirements length 9500 mm
space requirements width 5500 mm
total height 5800 mm
total weight approx. 63000 kg
CNC controls ATEK NUMATEK 3000

Categories: ,

Description

DROOP & REIN CNC Bed Type Mill LFAS 2000 kc N, table 2000×4260 mm, XZW 3300x350x1300 mm (1983)



Price: Write Us

Date of Offer :
Location : Europe
Quantity : 1
Availability : 20 Sep 2014
