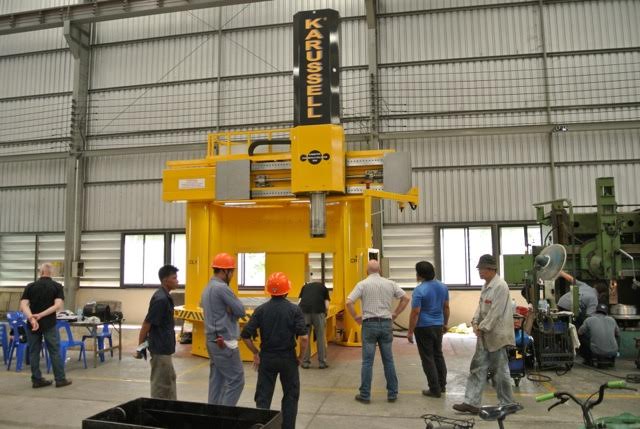

KARUSSEL CNC Vertical Borer (2015) BM 3600R 3.6m capacity, 2m working height SIEMENS 802D SL (2015)



MACHINE REF :12078

Machines For Sale — . Borer, Vertical/VTL Ram Type CNC

MAKE :KARUSSEL CNC Vertical Borer (2015)

MODEL :BM 3600R 3.6m capacity, 2m working height SIEMENS 802D SL

YEAR OF MANUFACTURE :2015

CONTROLLER :SIEMENS 802D SL

SPECIFICATION :TABLE DIAMETER 2300mm
MAX DIAMETER OF WORK PIECE ADMITTED 3600mm
MAX TURNING DIAMETER 3600mm
MAX HEIGHT OF WORK PIECE ADMITTED 2000mm
MAX TURNING HEIGHT 2000mm
MAX TABLE LOAD 20,000 kgs
TABLE SPEEDS 14-75 rpm (INFINITELY VARIABLE)
WORKING HEIGHT OF TABLE 945mm
TABLE DRIVE MOTOR 90kw AC
CONTROL 2-AXIS CNC WITH MANUAL OPERATION MODE
X AXIS TRAVERSE 1800mm
Z AXIS TRAVERSE 2000mm
X + Z AXIS SERVOMOTORS 4.29kw
X + Z TRAVERSE RATE 1-5000mm/min
RAM SECTION 320mm DIAMETER
VDI TOOL HOLDING (STANDARD)
THRU-TOOL COOLANT SUPPLY
4 x TABLE JAWS
2 x 72w LED OVERHEAD WORK LIGHTS
PENDANT CONTROL
OVERALL DIMENSIONS (W x L x H)
5100 x 5300 x 6670mm
NET WEIGHT 24,000 kgs
Accuracy ISO 3655

DESCRIPTION :Siemens 802D-SL control.
Standard spec machine but also available with some optional equipment: Additional set of table jaws and 2 x sets of table extensions for large diameter work holding.
2 AXIS MACHINE
"AS NEW"

Categories: ,

Description

KARUSSEL CNC Vertical Borer (2015) BM 3600R 3.6m capacity, 2m working height SIEMENS 802D SL (2015)



Price: Write Us

Date of Offer :
Location : Asia
Quantity : 1
Availability : 30 May 2017
