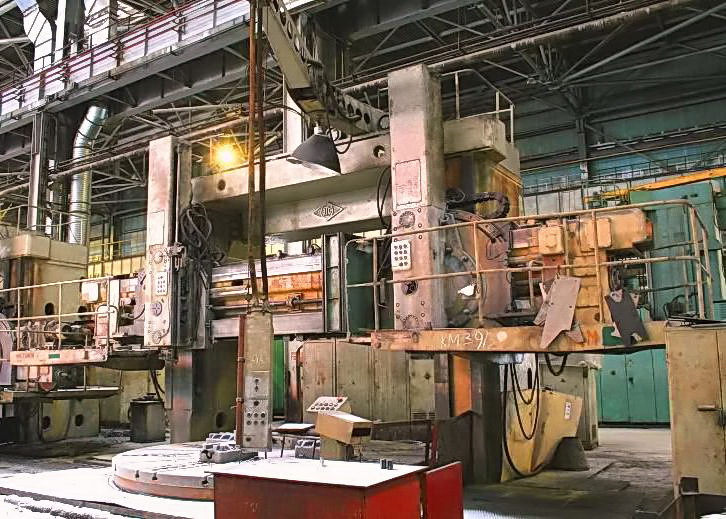

KOLOMNA Ram Type VTL 1540F1, turning capacity DxH 4000×2000 mm

Return to Previous Page

Product Description

KOLOMNA Ram Type VTL 1540, turning capacity DxH 4000x2000 mm (1965)
KOLOMNA Ram Type VTL 1532T, capacity DxH 3200x2000 mm

KOLOMNA Ram Type VTL 1540F1, turning capacity DxH 4000×2000 mm



MACHINE REF :4252

Machines For Sale — . Borer, Vertical/VTL Ram Type

MAKE :KOLOMNA Ram Type VTL

MODEL :1540F1, turning capacity DxH 4000×2000 mm

CONTROLLER :conventional

SPECIFICATION :Maximum workpiece diameter 4000 mm
Maximum workpiece height 2000 mm
Maximum workpiece weight 63000kg
Faceplate diameter 4000 mm
Faceplate speeds range 0,52-48,7 rpm
Main motor power 125 kW
Overall dimensions, LxWxH 5900x10100x7200 mm
Height over the floor 6000 mm
Weight of the machine 105000 kg

FURTHER SPECIFICATION :Maximum workpiece diameter 4000 mm
Maximum workpiece height 2000 mm
Maximum workpiece weight 63000kg
Faceplate diameter 4000 mm
Faceplate speeds range 0,52-48,7 rpm
Maximum faceplate torque 160 kNm
Maximum cross beam vertical travel 1870 mm
Maximum vertical rams vertical travel 1250
Maximum vertical rams horizontal travel 2300
Maximum vertical supports turning angle +30/-15 degree
Maximum vertical supports vertical and horizontal feeds range 0.059-470mm/min
Vertical rams and supports fast travel speed 2715 mm/min
Cross beam fast travel speed 2715 mm/min
Main motor power 125 kW
Overall dimensions, LxWxH 5900x10100x7200 mm
Height over the floor 6000 mm
Weight of the machine 105000 kg

Categories: ,

Description

KOLOMNA Ram Type VTL 1540F1, turning capacity DxH 4000×2000 mm



Price: Write Us

Date of Offer :
Location : Russian Federation
Quantity : 1
Availability : 12 Jan 2011
