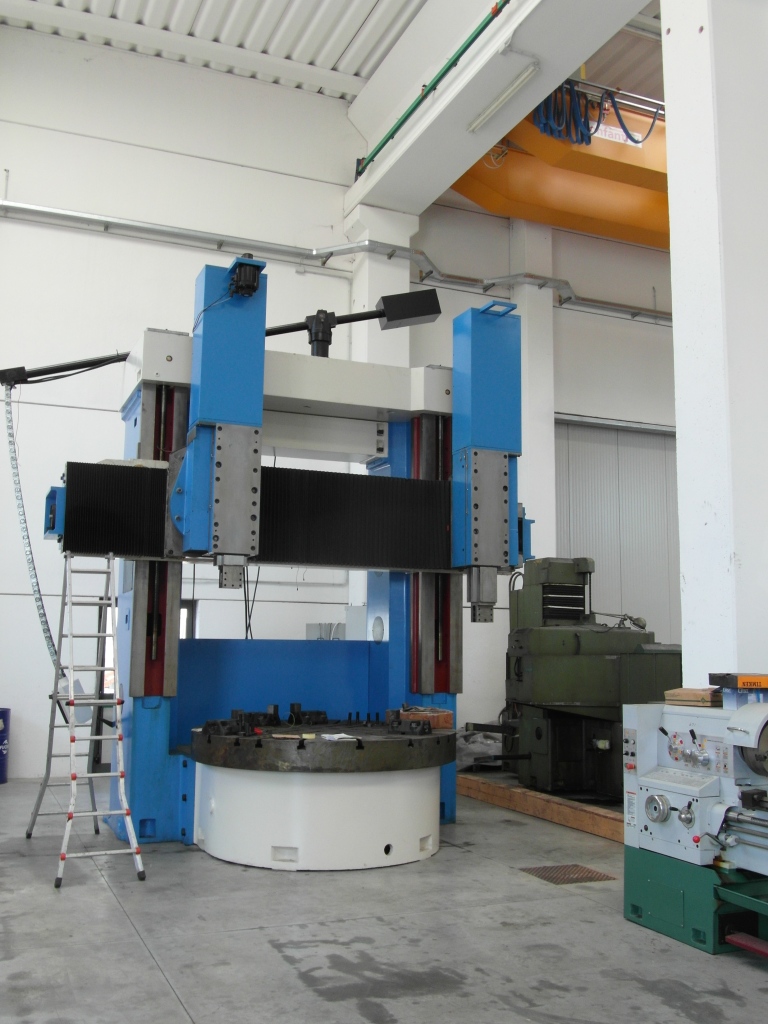

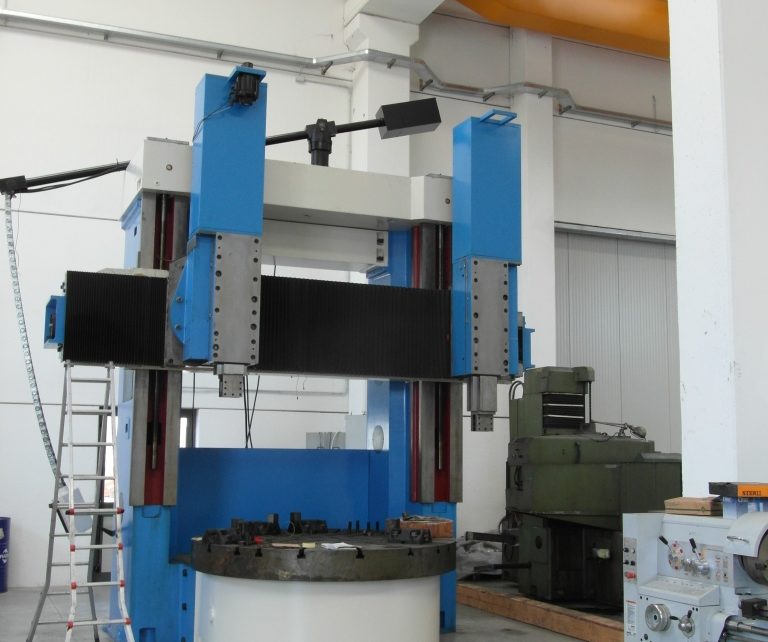

New Titan SVC 25



MACHINE REF :7397

Machines For Sale — . Borer, Vertical/VTL Ram Type

MAKE :New Titan

MODEL :SVC 25

SPECIFICATION :Brand new machine never installed
Vertical tool post Max. turning dia. diam.2500 mm
table size dia. diam. 2250 mm
Max. working height of workpiece 2000mm
table speed 4 range steepless 5-120r/min
Max. working weight 16(T)
Right tool post travel distance level 1400mm
Right tool post travel distance vertical(Model T ram) 1000mm
Left tool post travel distance level 1400mm
Left tool post travel distance vertical(Model T ram) 1000mm
Tool post quick travel speed 1550mm/min
Crossbeam travel 1700mm
Crossbeam speed 350mm/min
Main motor power (DC) Siemens 55KW
CNC Siemens 802
overaul size (length*width*height)mm 6510*4400*5080
Weight of machine 34t

Categories: ,

Description

New Titan SVC 25



Price: Write Us

Date of Offer :
Location : Italy
Quantity : 1
Availability : 16 Jan 2013
