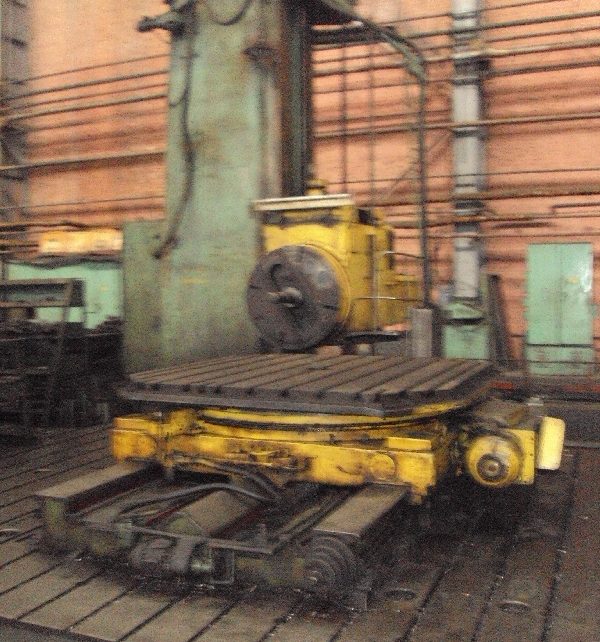

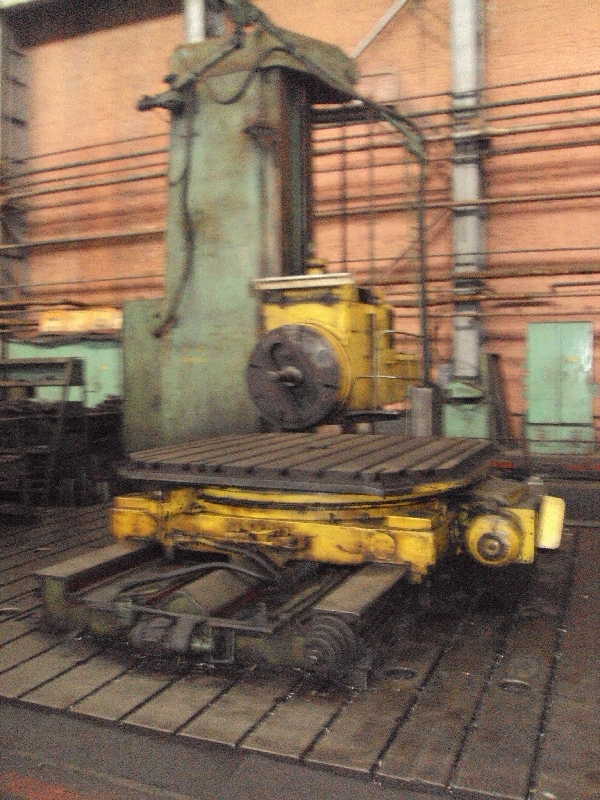

NOVOSIBIRSK Floor Type HBM 2A660, spindle dia 220 mm, X 6 m, table 2.5×2.5 m (1958)



MACHINE REF :3143

Machines For Sale — . Borer, Horizontal Floor

MAKE :NOVOSIBIRSK Floor Type HBM

MODEL :2A660, spindle dia 220 mm, X 6 m, table 2.5×2.5 m

YEAR OF MANUFACTURE :1958

CONTROLLER :conventional

SPECIFICATION :Spindle diameter 220 mm
Spindle speeds range 1-510 rpm
X 6000 mm
Y 3000 mm
Z 600 mm
W 1800 mm
Table size 2500х2500 mm
Table load 50 t
Faceplate diameter 1150 mm
Faceplate speeds range 1-135 rpm
Base plate dimensions 8100×5000 mm
Total power requirement 125 kW
Overall dimensions LxWxH 11350х11280х7800мм.
Weight of the machine 152 t.

Categories: ,

Description

NOVOSIBIRSK Floor Type HBM 2A660, spindle dia 220 mm, X 6 m, table 2.5×2.5 m (1958)



Price: Write Us

Date of Offer :
Location : Russian Federation
Quantity : 1
Availability : 01 Jun 2010
