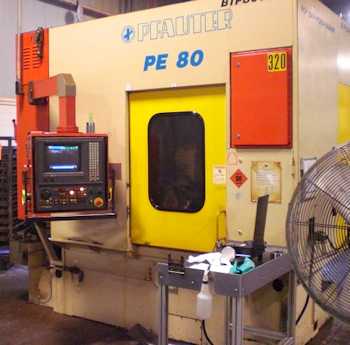

PFAUTER CNC Gear Hobber PE 80 With Fanuc 15mb control and auto load



MACHINE REF :8392

Machines For Sale — . Gear, Hobber (CNC)

MAKE :PFAUTER CNC Gear Hobber

MODEL :PE 80 With Fanuc 15mb control and auto load

SPECIFICATION :PE80 PFAUTER CNC GEAR HOBBER
EQUIPPED WITH:
Fanuc 15MB Control
Auto Load
Hob Arbor
Hydraulic Workholding W/Draw Bar
Coolant System
Debur Tool
Tailstock W/Center
Light Curtains
SPECIFICATIONS:
Pitch Rating Depending On Application:10 DP
Max. Workpiece Diameter:3.2"
Max. Axial Travel:7.9"
Max. Swivel Angle LH/RH:-30/+45 deg
Max. Hob Dimensions,Diam./Length:3.2"/5.1"
Max. Hob Shift Travel:4.3"
Taper In Hob Spindle:ISO 30
Max. Worktable Rotation:400 RPM
Number Of Starts Of Worktable Worm:6
Center Distance Workpiece/Hob.Min./Max:0.4"/4"
Hob Spindle Motor:10 HP
Hob Spindle Speed Range Infinitely Variable:500-3000 RPM
Rapid Traverse Rate-Radial,Axial,Tangential:118 IPM
Approx. Machine Weight:16,500 LBS

Categories: ,

Description

PFAUTER CNC Gear Hobber PE 80 With Fanuc 15mb control and auto load



Price: Write Us

Date of Offer :
Location : United States
Quantity : 1
Availability : 12 Apr 2014
