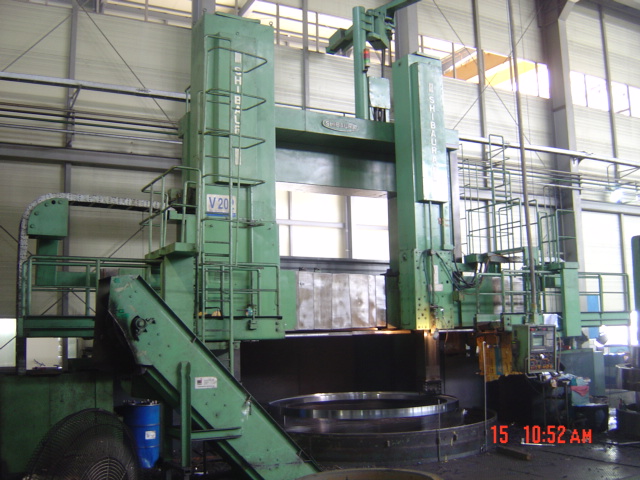

SHIBAURA CNC VTL TD-30/36S – 3000mm x 3220mm working height SIEMENS 840C – CIF PRICE



MACHINE REF :7043

Machines For Sale — . Borer, Vertical/VTL Ram Type CNC

MAKE :SHIBAURA CNC VTL

MODEL :TD-30/36S – 3000mm x 3220mm working height SIEMENS 840C – CIF PRICE

CONTROLLER :Siemens 840C

SPECIFICATION :CNC Vertical Turning Lathe Double Column
Reference#: 12-00022
Make: / Model: TD-30/36S / YOM: 1979
* Specification ：
GENERAL NOTES/ OPTIONS
Numerical control: Right-FANUC 7T(RETROFITTED WITH SIEMENS 840C)
Read out measuring: Included in numerical control unit.
TABLE
Diameter: 3000mm
Depth of minimum section: 360mm
Diameter of support face: 1800mm
Spindle diameter(main bearing): 260mm (bore dia. of main brg.)
Main drive torque rating, Gear train torque rating: 10,000kg-m
Bull gear diameter: 2063mm
Bull gear face width: 100mm
CAPABILITY
Max. work piece diameter: 3600mm
Max. work piece height
-Under cross rail: 3220mm
-Under ram lead: 3030mm (including tool holder)
Max. work piece weight: 50,000kg
Main drive horse power: DC 55kW
Vertical travel of cross rail: 2030mm
Horizontal travel of ram head: Right: 1995mm, Left: 1995mm
Vertical travel of ram: Right: 1600mm, Left: 1250mm
Swivel angle of ram head: Right: 30deg (to both sides)
SPEEDS AND FEEDS
Range of table speeds
-Infinitely variable: 0.32 ~ 63rpm
-Constant peripheral: Available
Range of feeds
-Cross rail: 360mm/min
Rapid traverse rates
-Ram head: 2400mm/min
-Ram: 2400mm/min
MACHIINE BASE
Width of base: 2240mm in dia.
Depth of base: 475mm
MACHINE FRAME
Width over ways of column: 580mm
Number of ways: 2 ways
Width of individual ways: 150mm on each way
Column cross section
-At base: depth: 1400mm, width: 570mm
-At top: depth: 1400mm, width: 570mm
TOP CROSS BRACE SECTION
-Depth: 700mm
-Width: 650mm
CROSS RAIL
Depth of minimum section: 190mm
(section of slide ways for vertical traverse)
Length of rail: 5900mm
Width over ways: 740mm
Number of ways: 2 ways
Width of individual ways: upside: 140mm, underside: 120mm
Length and type of saddle bearing on column ways
-Length: 905mm
-Type: hydrodynamic bearing
RAM HEADS
Depth of minimum section: 70mm
Length and type of saddle bearing on cross rail: 900mm Cross section of ram
-Right: 280x250mm
-Left: 250x250mm
Length and type of saddle bearing on ram head (Right)
-Length: 1250mm
-Type: antifriction way bearing (Left)
-Length: 1550mm
-Type: hydrodynamic bearing
WEIGHT
Basic machine (total): 57,000kg
Largest sub assembly (for transport): 10,000kg (table assembly)

DESCRIPTION :price is cif any port

Categories: ,

Description

SHIBAURA CNC VTL TD-30/36S – 3000mm x 3220mm working height SIEMENS 840C – CIF PRICE



Price: Write Us

Date of Offer :
Location : Not Stated
Quantity : 1
Availability : 09 Oct 2012
