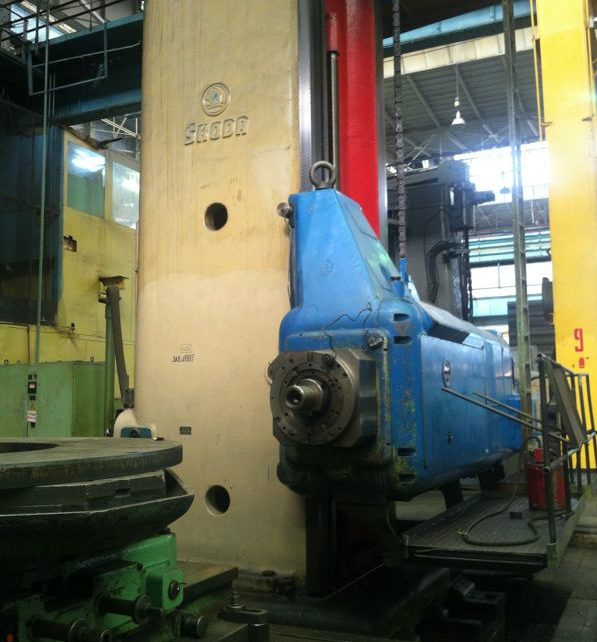

SKODA Floor Type Horizontal Borer WITH ROTARY TABLE & TAILSTOCK – FOB PRICE WD200A, spindle 200 mm, X/Y 4×3.15 m (1966)



MACHINE REF :8314

Machines For Sale — . Borer, Horizontal Floor

MAKE :SKODA Floor Type Horizontal Borer WITH ROTARY TABLE & TAILSTOCK – FOB PRICE

MODEL :WD200A, spindle 200 mm, X/Y 4×3.15 m

YEAR OF MANUFACTURE :1966

CONTROLLER :conventional

SPECIFICATION :Spindle diameter 200 mm,
Spindle taper M120,
Spindle speeds range 0,8-630 rpm,
X 4000 mm,
Y 3150 mm,
W 1300 mm,
Rotary table size 2000×2000 mm,
Main motor power 77 kW,
Overall dimensions 10800x5900x8270 mm,
Weight 84,1 t

FURTHER SPECIFICATION :SKODA WD200A Floor Type Horizontal Borer
Spindle diameter 200 mm,
Spindle taper M120,
Spindle speeds range 0,8-630 rpm,
Max boring depth 2000 mm,
X 4000 mm,
Y 3150 mm,
W 1300 mm,
Threads range:
– 22 metrics 0,5-12 mm,
– 32 Whitworths 28-1 ppi
Main motor power 77 kW,
Total power requirement 180 kW,
Overall dimensions 10800x5900x8270 mm,
Weight 84,1 t

DESCRIPTION :Slightely used, guideways in excellent condition. Electrics need revision.
TABLE & TAILSTOCK AVAILABLE.
PRICE IS ON FOB BASIS.

Categories: ,

Description

SKODA Floor Type Horizontal Borer WITH ROTARY TABLE & TAILSTOCK – FOB PRICE WD200A, spindle 200 mm, X/Y 4×3.15 m (1966)



Price: Write Us

Date of Offer :
Location : Russian Federation
Quantity : 1
Availability : 20 Nov 2013
