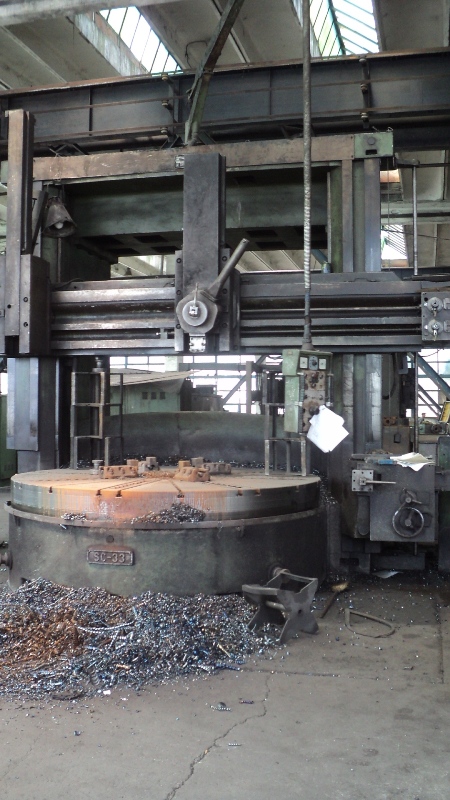

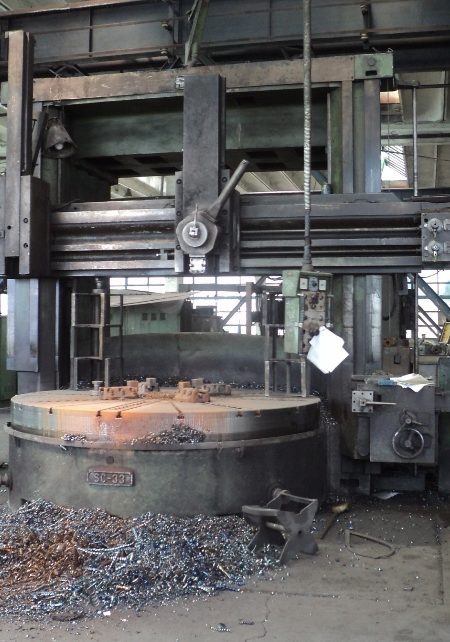

TITAN Vertlcal lathe SC33 – 3250mm x 2300mm height



MACHINE REF :8268

Machines For Sale — . Borer, Vertical/VTL Ram Type

MAKE :TITAN Vertlcal lathe

MODEL :SC33 – 3250mm x 2300mm height

SPECIFICATION :FOR SALE
Manufacturer: TITAN Romania
Max. swing: 3300 mm
Max. swing with side head: 3250 mm
Max. turning height (under the cross rail): 2300 mm
Table diameter: 3000 mm
Max. work piece weight: 18000 daN
Table speed range: 1-90 rpm
Main motor power: 60kW
Right head vertical stroke: 760 mm
Left head vertical stroke: 1200 mm
Side head stroke:
– Horizontal: 1000 mm
– Vertical: 2200 mm
Working feed range, axes X1, X2, Z1, Z2: 0,05-5 Mm/rot
Cross rail vertical travel (standard): 48000 mm
Overall dimensions (H, L, W) : 5400x5300x5600mm

DESCRIPTION :price CIF

Categories: ,

Description

TITAN Vertlcal lathe SC33 – 3250mm x 2300mm height



Price: Write Us

Date of Offer :
Location : Europe
Quantity : 1
Availability : 07 Sep 2013
