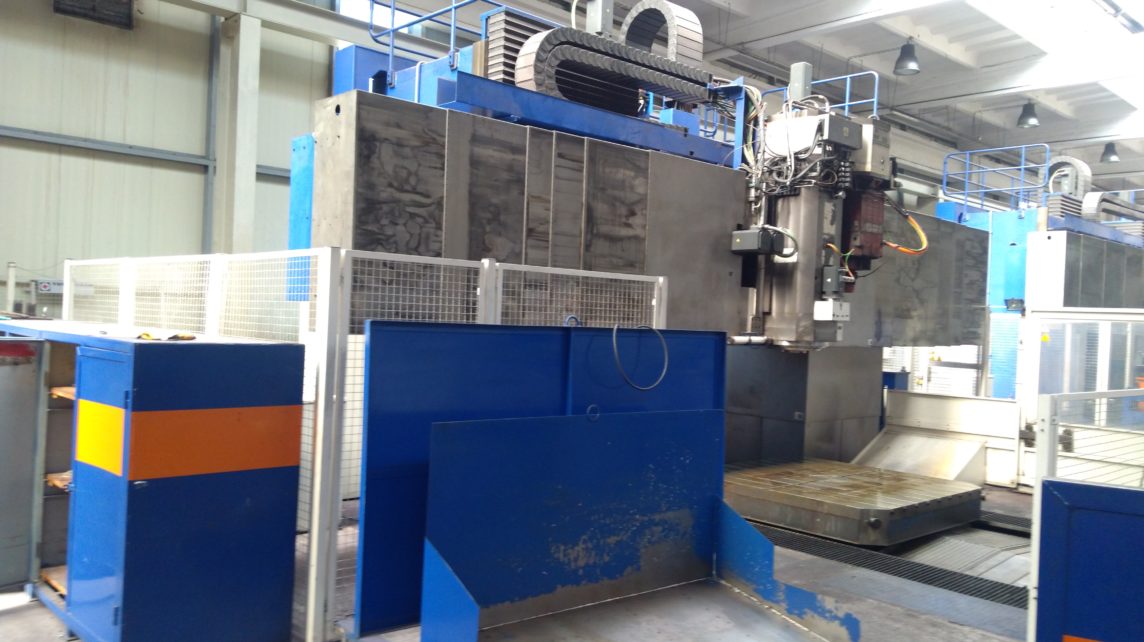

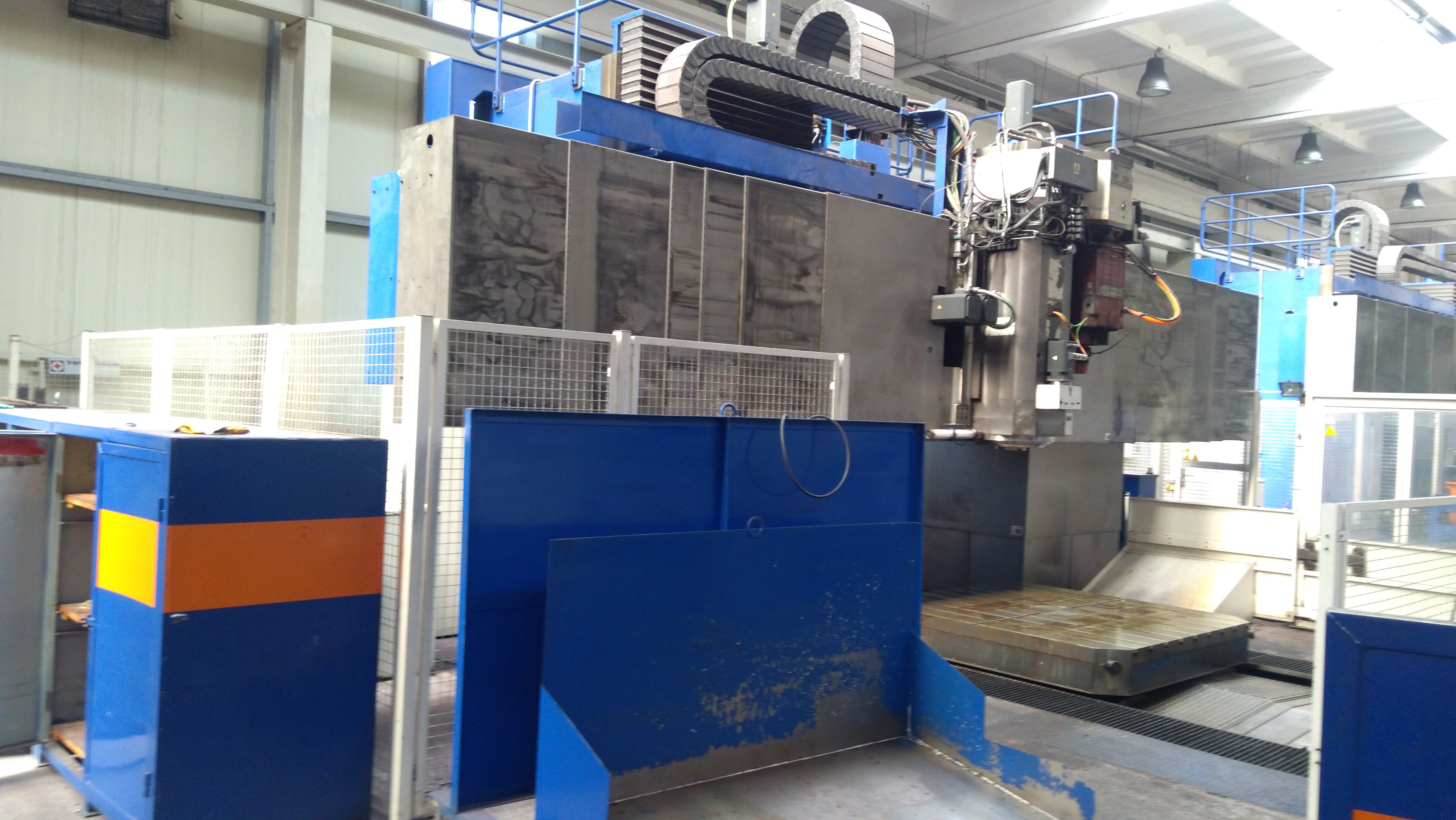

TOS CNC Portal Mill FRP 250 FSE / A2 – 3.8m x 2.25m (Heidenhain TNC 530) – Machine as new



MACHINE REF :13685

Machines For Sale — . Mill, Plano/Gantry Type CNC

MAKE :TOS CNC Portal Mill

MODEL :FRP 250 FSE / A2 – 3.8m x 2.25m (Heidenhain TNC 530) – Machine as new

CONTROLLER :Heidenhain TNC 530

SPECIFICATION :FRP 250 FSE / A2 Portal milling machine, TOS Kurim
Portal milling machine with fixed stand, with slide bar and sliding table
Technical parameters of the machine
Control system: HEIDENHEIN 530.
shifts
Table X – axis travel mm 2 250
Y axis stroke 3,800
Vertical alignment of the cross – member in the W axis
Proportion between stands mm 2 500
Workspace
Headstock with preparation for exchangeable spindle heads
Spindle speed rpm 500
Engine power kW 100
Torque Nm 4,000
ISO 60 spindle taper
Work table CER 2000×2000
Stroke in linear axis mm2250
Width mm 2 000
Length mm 2,000
Height from floor mm 1 000
Clamping T – grooves:
Number 9
Pitch mm 200
Size – groove width mm 28 H11
Centering hole mm 100H7
Max. load centric kg 20,000
Cooling system – External tool cooling
Delivery Amount l / min 50
Electrical equipment
Spindle drive Siemens, AC SIMODRIVE 611 D
Feed drive Siemens, AC SIMODRIVE 611 D
HEIDENHAIN metering
Spindle head VP2
VP2 – rotary angled (90deg) head with ISO 50
Speed ​​range rpm 20 – 4000
Max torque Nm 1000
Usable power of the main drive kW 30

DESCRIPTION :Machine as new.

Categories: ,

Description

TOS CNC Portal Mill FRP 250 FSE / A2 – 3.8m x 2.25m (Heidenhain TNC 530) – Machine as new



Price: Write Us

Date of Offer :
Location : Europe
Quantity : 1
Availability : 14 Mar 2018
